AB1 Grimlock
Flow Formed
The AB1 Grimlock commands attention with its aggressive multi-spoke design and machined details that catch light from every angle. Built for serious off-road adventures, this wheel delivers the strength and style your truck deserves on any terrain. Available in multiple finishes to match your build aesthetic.

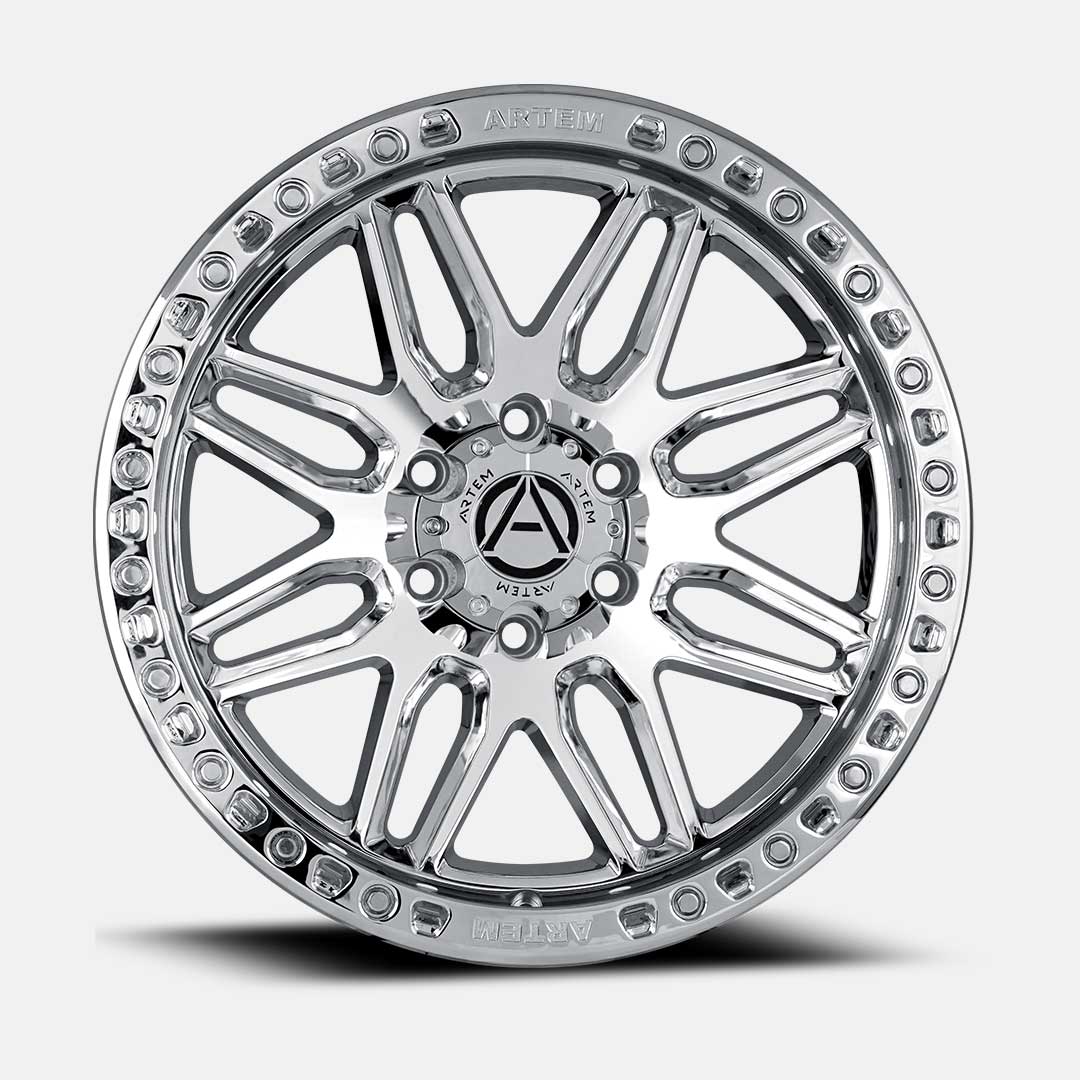

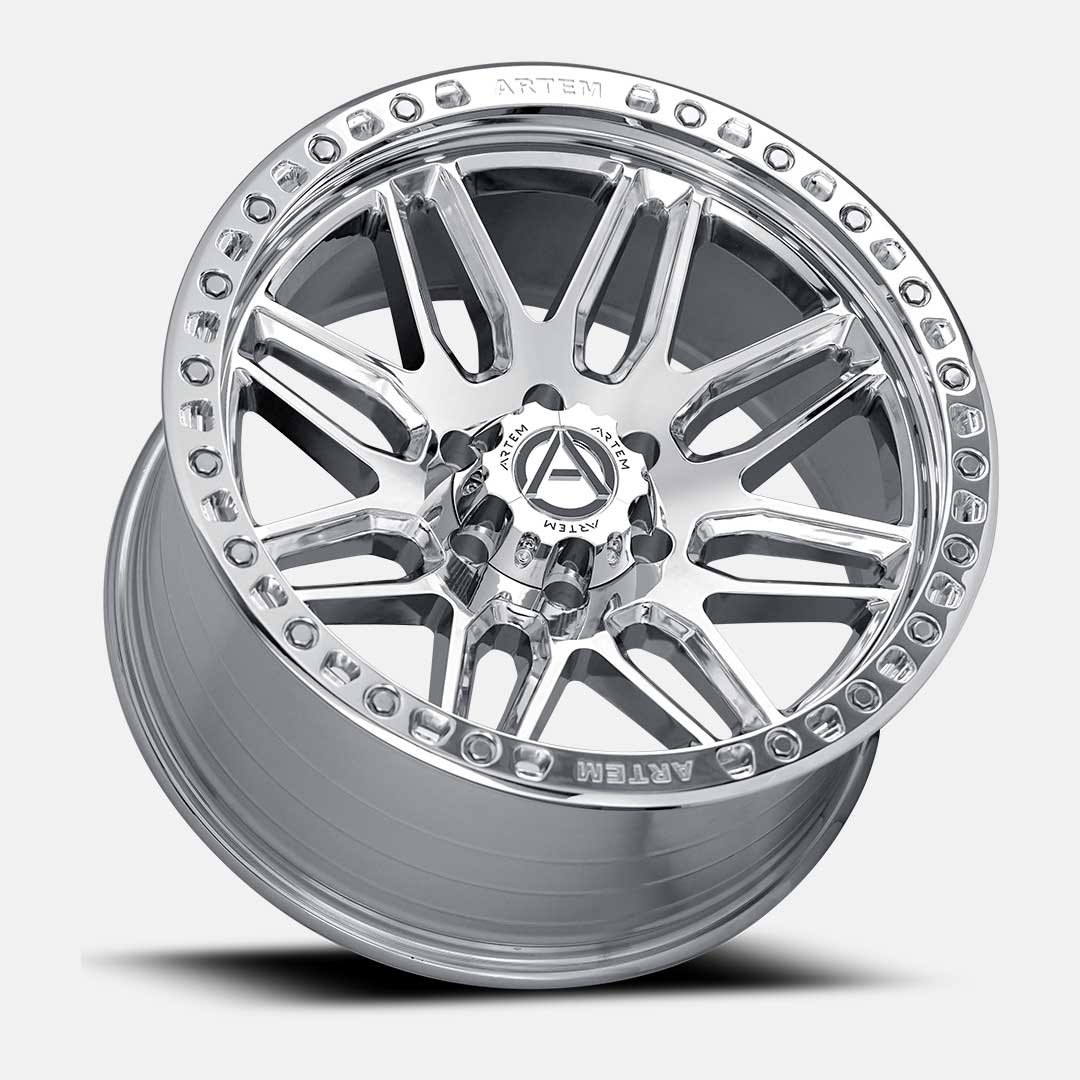

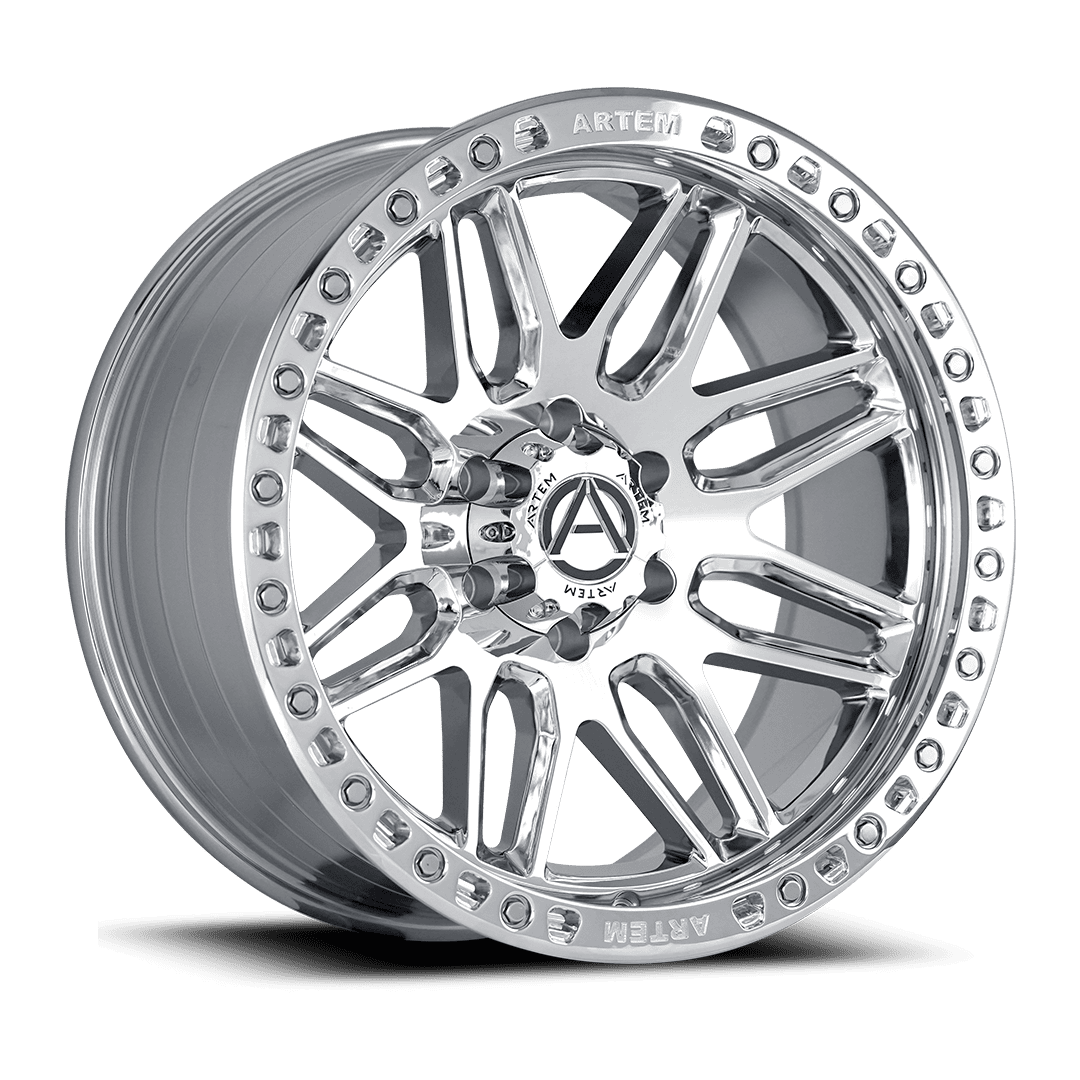

Chrome

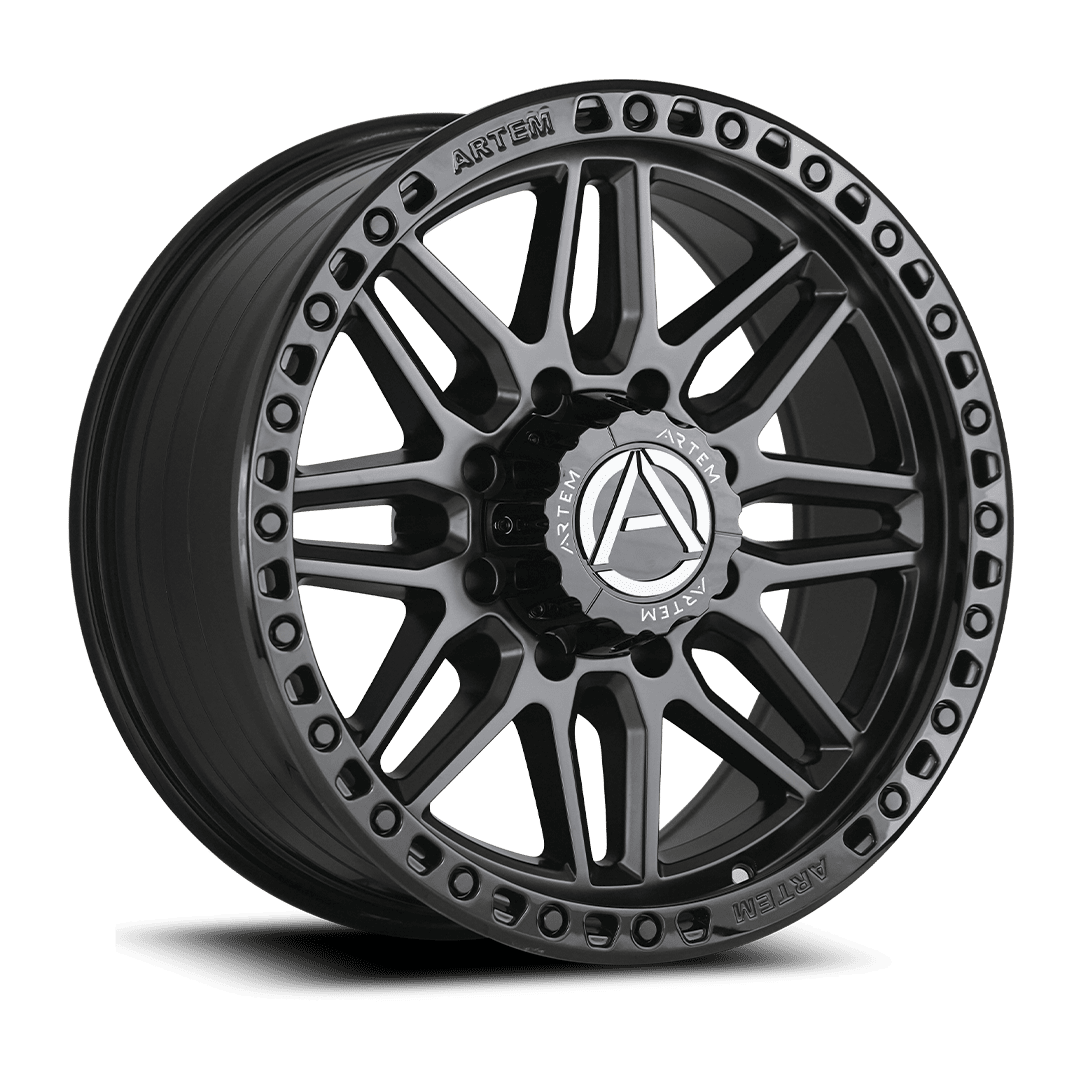

Satin Black

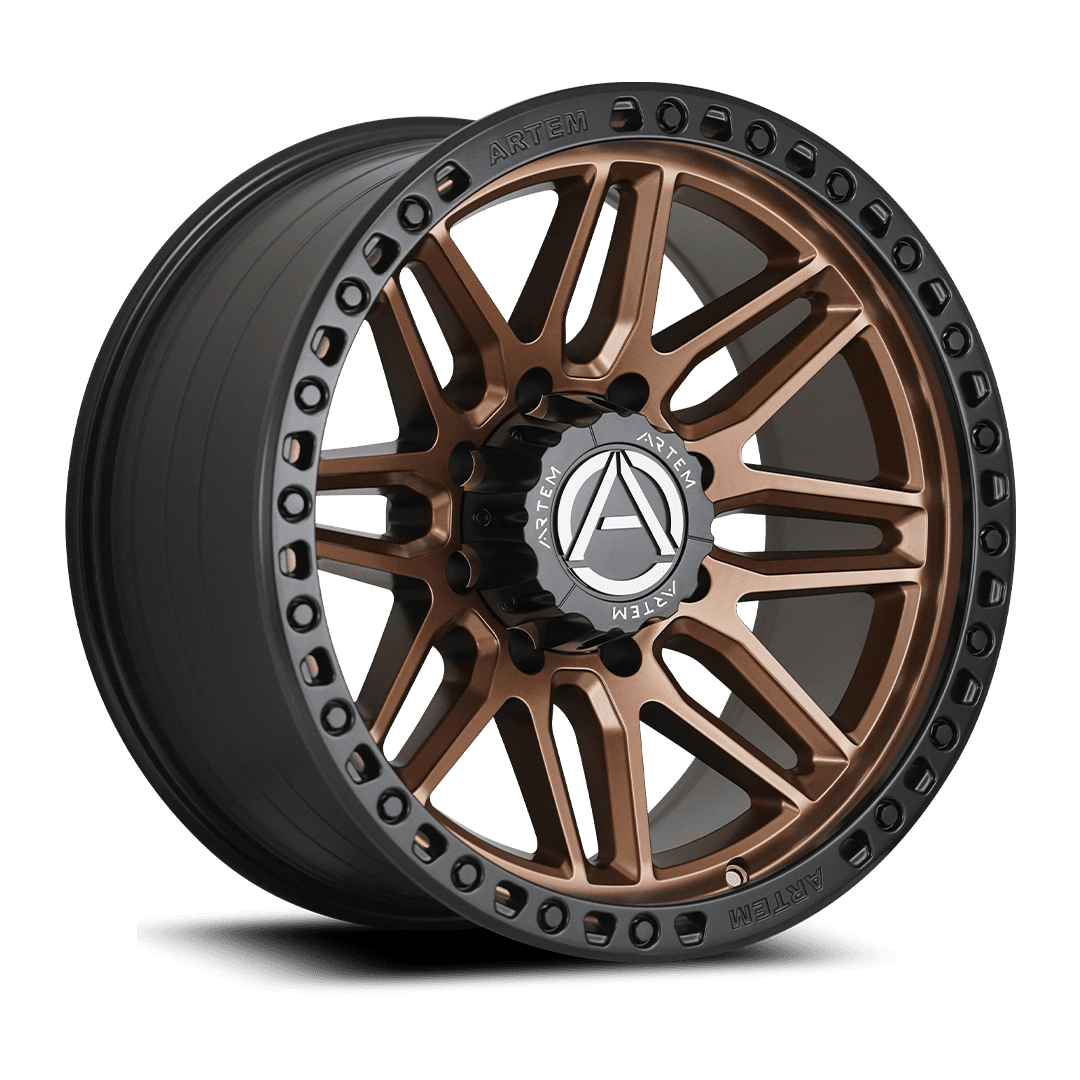

Bronze

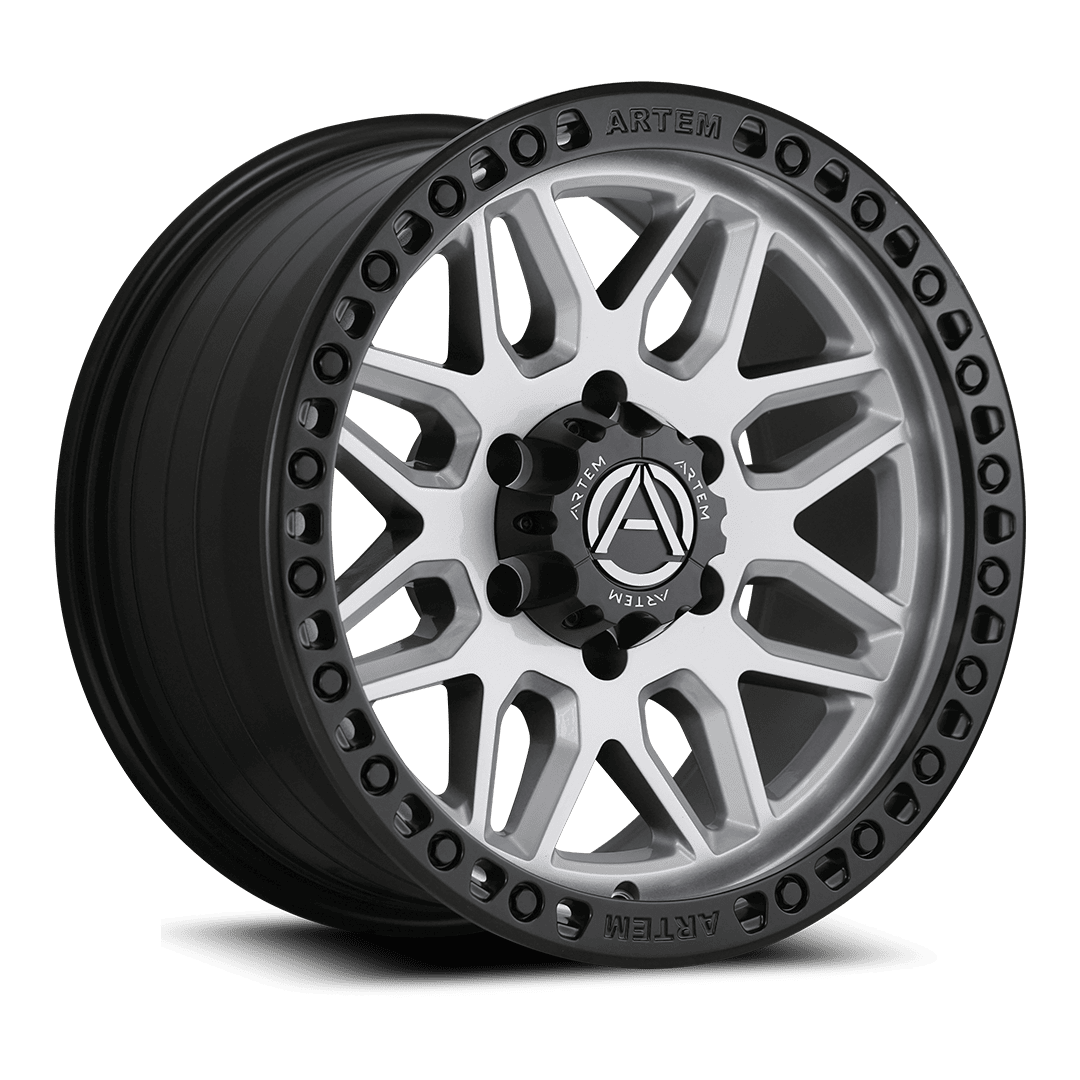

Silver
Specifications
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Load Rating |
|---|---|---|---|---|---|---|
| AB1-179061397+12BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 17x9 | 6X5.5 | +12 | 106.2 | 2500 |
| AB1-1790127-12SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 17x9 | 5X127 | -12 | 78.3 | 2500 |
| AB1-17906135+12BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 17x9 | 6X135 | +12 | 87.1 | 2500 |
| AB1-17906135+12SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 17x9 | 6X135 | +12 | 87.1 | 2500 |
| AB1-179061397+12SFSBR | SILVER W/ SATIN BLACK RING | 17x9 | 6X5.5 | +12 | 106.2 | 2500 |
| AB1-179061397+12SBFGBR | MATTE BLACK W/ GLOSS BLACK RING | 17x9 | 6X5.5 | +12 | 106.2 | 2500 |
| AB1-1790127-12BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 17x9 | 5X127 | -12 | 78.3 | 2500 |
| AB1-1790127-12SFSBR | SILVER W/ SATIN BLACK RING | 17x9 | 5X127 | -12 | 78.3 | 2500 |
| Part Number | Finish | Size | Bolt Pattern | Offset | Bore | Load Rating |
|---|---|---|---|---|---|---|
| AB1-209061397+12SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 20x9 | 6X5.5 | +12 | 106.2 | 2500 |
| AB1-209061397-12SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 20x9 | 6X5.5 | -12 | 106.2 | 2500 |
| AB1-209061397+12BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 20x9 | 6X5.5 | +12 | 106.2 | 2500 |
| AB1-20906135+12SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 20x9 | 6X5.5 | +12 | 87.1 | 2500 |
| AB1-20906135+12BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 20x9 | 6X135 | +12 | 87.1 | 2500 |
| AB1-209061397-12C | CHROME | 20x9 | 6X5.5 | -12 | 106.2 | 2500 |
| AB1-20906135+12C | CHROME | 20x9 | 6X135 | +12 | 87.1 | 2500 |
| AB1-201061397-19SBFGBR | MATTE BLACK W/ GLOSS BLACK RING | 20x10 | 6X5.5 | -19 | 106.2 | 2500 |
| AB1-20106135-19BZFSBR | MATTE BLACK W/ GLOSS BLACK RING | 20x10 | 6X135 | -19 | 87.1 | 2500 |
| AB1-20106135-19SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 20x10 | 6X135 | -19 | 87.1 | 2500 |
| AB1-201061397+19BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 20x10 | 6X5.5 | -19 | 106.2 | 2500 |
| AB1-20105127-19BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 20x10 | 5X127 | -19 | 78.3 | 2500 |
| AB1-20105127-19SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 20x10 | 5X127 | -19 | 78.3 | 2500 |
| AB1-20106135-19C | CHROME | 20x10 | 6X135 | -19 | 87.1 | 2500 |
| AB1-20106135-19SFSBR | SILVER W/ SATIN BLACK RING | 20x10 | 6X135 | -19 | 87.1 | 2500 |
| AB1-20108180-19SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 20x10 | 8X180 | -19 | 125.2 | 3500 |
| AB1-20108170-19SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 20x10 | 8X170 | -19 | 125.2 | 3500 |
| AB1-20108165-19SBFGBR | SATIN BLACK W/ GLOSS BLACK RING | 20x10 | 8X6.5 | -19 | 125.2 | 3500 |
| AB1-20108180-19BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 20x10 | 8X180 | -19 | 125.2 | 3500 |
| AB1-20108170-19BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 20x10 | 8X170 | -19 | 125.2 | 3500 |
| AB1-20108165-19BZFSBR | SATIN BRONZE W/ SATIN BLACK RING | 20x10 | 8X6.5 | -19 | 125.2 | 3500 |
| AB1-201061397-19SFSBR | SILVER W/ SATIN BLACK RING | 20x10 | 6X5.5 | -19 | 106.2 | 2500 |
| AB1-201061397-19C | CHROME | 20x10 | 6X5.5 | -19 | 106.2 | 2500 |
Technology
Flow Formed construction delivers superior strength through advanced manufacturing processes. Each wheel undergoes precise forming techniques that enhance structural integrity while maintaining optimal weight distribution for off-road performance and daily driving confidence.
